Contents
C15
60 RA51/52/53/54/55 INSTRUCTION MANUAL – 05
5.5.4.6.3 Changing the settings in PRESET2 screen
(1) Press the "MENU" key, select SETUP>CUSTOM>PRESET2, and press "ENT". This will
open a screen for setting various preset parameters that control the operation of your radar.
(2) Select items with the up-down cursor pad keys and options with the left-right keys.
The selected item will be enclosed in a frame and the current option setting will be
highlighted.
(3) After you've completed making settings, exit from the PRESET2 screen by pressing "ENT".
a) Guard Zone Level Guard zone detection level setting. 1: High sensitivity for smaller targets
through 7: to sense large targets only
b) Guard Zone Mode Guard zone detection mode setting
IN:----- Detect target when it moves inside the zone
OUT:-- Detect target when it leaves target zone
c) Hold Hold the radar image for 30 seconds after you switch to ST'BY.
The EBL and VRM can be used in HOLD state.
d) Display Unit Mode Display unit operation mode setting
RDR:-- Radar mode(normal)
MONI:-Monitor mode (for slave display use)
NAV:-- Navigation mode (for DATA indicator use)
e) External Buzzer External buzzer control setting
OFF:-- Buzzer off
CONT:Continuous tone
INT:---- Intermittent tone
f) Bearing pulse/rot.(IN) To change the setting when connected to another type of radar in
monitor mode.
g) Bearing pulse/rot.(OUT) To change the setting when connected to another type of radar monitor
unit
h) Built-in simulator Demonstration mode
i) Interference Rejection Reject interference from other radars nearby
OFF:-- IR OFF
IR1:---- ON level 1
IR2:---- ON level 2
j) Boat Speed How the radar will determine and display your boat's speed
PRESET2
GZ LVL 1 2 3 4 5 6 7
GZ MODE I N OUT
HOLD ON OFF
DISPLAY RDR MONI NAVI
EXT BUZ OFF CONT INT
IN P /R 1080 1024 2048 4096 360
OUT P/R 1080 1024 2048 4096 360
DEMO ON OFF
IR OFF IR1 IR2
SPD SET NMEA MANU 0.0KT LOG 200P
LANGUAGE CHI DAN ENG FRE GER
GRE ITA JPN KOR NOR
POR RUS SPA SWE TUR
THA
SCAN SPEED STD HIGH
COLOR MONO MULTI
a) Guard Zone Level
b) Guard Zone Mode
c) Hold
d) Display Unit Mode
e) External Buzzer
f) Bearing pulse/rot (IN)
g) Bearing pulse/rot (OUT)
h) Built-in Simulator
i) Interference Rejection
j) Ship's Speed
k) Indication Language
l) Scan speed
m) Echo Color
RA51/52/53/54/55 INSTRUCTION MANUAL – 05 61
NMEA:-Data input from NMEA port
MANU:-Set speed manually with the control knob
LOG:
Speed input from dry contact log (Select input pulse rate with
control knob)
k) Display Language CHI: Chinese KOR: Korean DAN: Danish NOR: Norwegian
ENG: English POR: Portuguese FRE: French RUS: Russian
GER: German SPA: Spanish GRE: Greek SWE: Swedish
ITA: Italian TUR: Turkish JPN: Japanese THA: Thai
l) Scan Speed Scanning speed setting
STD: --Standard
HIGH: High
( This setting can be changed only in the stand-by mode.)
m) Echo Color Video presentation switch
MONO:Yellow or Green monochrome
MULTI:Red to Green multi-color

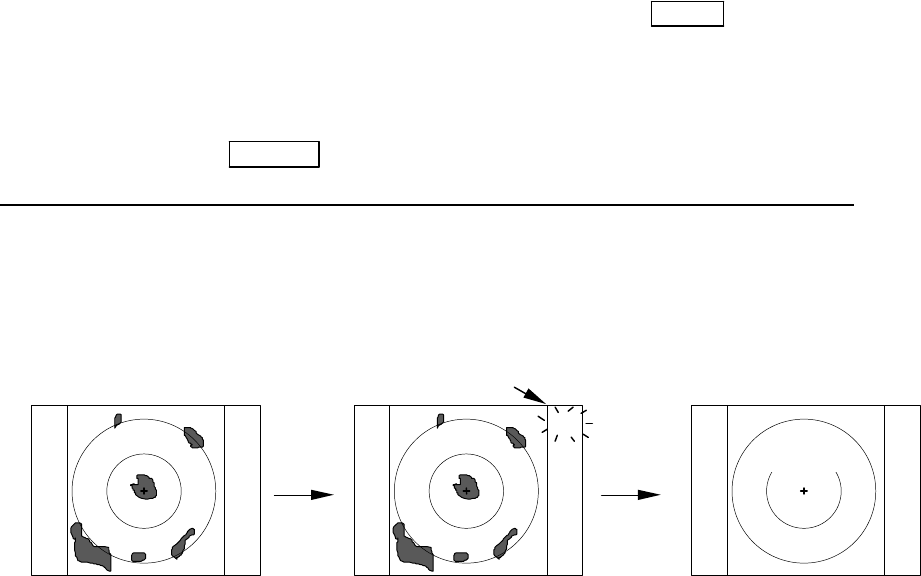

HOLD function POWER = POWER key to press
The HOLD function is only available in standby mode that momentarily freezes the radar picture.
In this mode, you can use VRMs and EBLs and, as far as the operation continues the picture
stays frozen. If you leave these controls, the timer starts to count and after 30 seconds the screen
will be put back automatically to normal ST’BY mode.
Setting HOLD POWER (Operation)
↓ ↓ ↓
(Under Tx) ↑<-------Under HOLD mode--->↑<-----------ST’BY DISPLAY???--
Turn to transmission off
EBL,VRM operation:X seconds X+30seconds (Time used)
NOTE: EBL and VRM function is usable in HOLD state.
ST’BY
HOLD
“HOLD” is displayed and blinks.
Tx OFF
X+30sec
Setting
HOLD
EBLs and VRMs can be used to locate a target.
