User Manual (1 of 4).pdf
![](/img.php?id=2298790&img=bg1.png)
User Manual
![](/img.php?id=2298790&img=bg2.png)
ii 1ii 1
Declaration of Conformity
Responsible Party: JK Imaging Ltd.
Address: 1411 W. 190th Street, Suite 550, Gardena, CA 90248, USA
Company Website: www.kodakpixpro.com
INDUSTRY CANADA
This device complies with Canadian RSS-210.
This device complies with Industry Canada license-exempt RSS standard (s).Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Radiation Exposure Statement:
This product complies with the Canadian portable RF exposure limit set forth for an uncontrolled
environment and is safe for intended operation as described in this manual. Additional RF exposure
reduction can be achieved if the product can be kept as far as possible from the user body or set the
device to lower output power if such function is available.
Industry Canada statement:
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio
exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne
doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y
compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Déclaration d’exposition aux radiations:
Before You Start
![](/img.php?id=2298790&img=bg3.png)
2
Le produit est conforme aux limites d’exposition pour les appareils portables RF pour les Etats-Unis
et le Canada établies pour un environnement non contrôlé.
Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux
expositions RF peut être augmentée si l’appareil peut être conservé aussi loin que possible du corps
de l’utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle
fonction est disponible.
For Customers in Europe
This symbol [crossed-out wheel bin WEEE Annex IV] indicates separate collection of
electrical waste and electronic equipment in the European countries. Please do not throw
the equipment into domestic refuse. Please use the return and collection systems available
in your country for proper, safe disposal of this product.
“CE” mark indicates that this product complies with the European requirements for safety,
health, environment and customer protection. “CE” marked cameras are intended for sales
in Europe.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC.
The following test methods have been applied in order to provepresumption of conformity
with the essential requirements of the R&TTE Directive 1999/5/EC:
- EN 60950-1: 2006+A11:2009 +A1:2010 +A12:2011
Safety of Information Technology Equipment
- EN 50566: 2013
Product standard to demonstrate compliance of radio frequency fields from handheld and
body- mounted wireless communication devices used by the general public (30 MHz — 6
GHz)
![](/img.php?id=2298790&img=bg4.png)
3
- EN 62209-2: 2010
Human exposure to radio frequency fields from handheld and bodymounted wireless
communication devices — Human models, instrumentation, and procedures
Part 2: Procedure to determine the specific absorption rate (SAR) for wireless
communication devices used in close proximity to the human body (frequency range of 30
MHz to 6 GHz)
- EN 300 328 V1.8.1 : 2012
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission
systems; Data transmission equipment operating in the 2.4 GHz ISM band and using spread
spectrum modulation techniques; Harmonized EN covering essential requirements under
article 3.2 of the R&TTE Directive.
- EN 301 489-1 V1.9.2: 2008
Electromagnetic compatibility and Radio Spectrum Matters (ERM); Electro Magnetic
Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical
requirements.
- EN 301 489-17 V2.2.1:2012
Electromagnetic compatibility and Radio spectrum Matters (ERM); Electro Magnetic
Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions
for 2.4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment.
For Customers in the U.S.A.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
![](/img.php?id=2298790&img=bg5.png)
4
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Radiation Exposure Statement:
This product complies with the FCC portable RF exposure limit set forth for an uncontrolled
environment and is safe for intended operation as described in this manual. Additional RF exposure
reduction can be achieved if the product can be kept as far as possible from the user body or set the
device to lower output power if such function is available.
![](/img.php?id=2298790&img=bg6.png)
5
About this Manual
Thank you for purchasing the KODAK PIXPRO Digital Camera. Please carefully read this manual and
keep it well for future reference.
JK Imaging Ltd. reserves all rights of this document. No part of this published manual may be
reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language
or computer language, in any form, by any means, without the prior written
permission of JK Imaging Ltd..
All trademarks mentioned in this manual are used for identification purposes only and are
properties of their respective owners.
This manual provides you with instructions on how to use your new KODAK PIXPRO Digital
Camera. Every effort has been made to ensure that the contents of this manual are accurate;
however JK Imaging Ltd. reserves the right to make changes without notice.
Throughout this manual, the following symbols are used to help you locate information quickly
and easily:
Indicates useful information.
Indicates precautions are to be taken while operating the camera.
In introducing you how to operate this camera, the following symbols may appear to facilitate
your understanding:
「Item properties」: The optional properties in the camera interface are indicated by the
symbol「 」.
![](/img.php?id=2298790&img=bg7.png)
6 7
Safety Notes
Do not drop the camera or allow it to hit
solid objects.
Do not disassemble or repair this camera by
yourself.
To prevent the camera from being damaged
by moisture, do not use or store the camera
in very humid environments, such as in rain
or near bodies of water.
Do not use or store the camera in dusty
places or on a beach to prevent dust or sand
from entering the camera, causing possible
damage to it.
Do not use or store the camera in a hot
environment or under direct sunlight.
Do not use or store the camera near a
powerful magnetic field, for example near a
magnet or transformer.
Avoid touching the lens of the camera.
Do not expose the camera to direct sunlight
for a long period time.
Turn the camera off, remove the battery and
the memory card, and dry it within 24 hours
if water accidentally comes in contact with
the camera.
When you take the camera from a
cold place to a warmer environment,
condensation may occur. Please wait for a
reasonable period of time before you turn it
on.
Before you remove the battery and memory
card, the camera should be turned off.
In cleaning the camera body, please don’t
use corrosive cleaning agents or those with
alcohol or organic solvent.
Use the professional lens wiping cloth and
dedicated cleaner to wipe and clean the
lens.
Download your photos and remove the
memory card when you are going to store
the camera for a long period of time.
If this camera is not in use for a long time,
please keep it in a dry and clean condition.
Our company will not pay compensation for
any failure of playback of pictures or videos
caused by improper operation.
Safety notes for this camera
![](/img.php?id=2298790&img=bg8.png)
76 7
Please use a battery that is the same type
as the one included.
Please use the attached charger to charge
the battery.
If the liquid leaking from the battery
contacts with your skin, please immediately
flush with water and seek medical
treatment. If the liquid leaks into the
camera, please contact the retailer.
Please dispose the wasted battery in
accordance with local (national or regional)
regulations.
To prevent the battery from being damaged,
do not drop the battery or allow it to hit
solid objects or to be scratched by the
objects.
Do not let the battery come in contact with
metal objects (including coins) to avoid
short circuiting, discharging, excessive heat,
or possible leakage.
Do not attempt to disassemble the battery.
Do not expose the battery to water. Always
keep the battery contacts dry.
Do not heat the battery or throw it into a
fire to avoid a possible explosion.
Do not store the battery in a hot
environment or in direct sunlight.
If an overheating happens during charging
or use, please immediately stop charging
or using and then take out the battery
with care in shutdown mode to wait it for
cooling.
If it is not used for a long time, please
remove the battery for proper keeping.
In a colder environment, the performance of
the battery could be noticeably reduced.

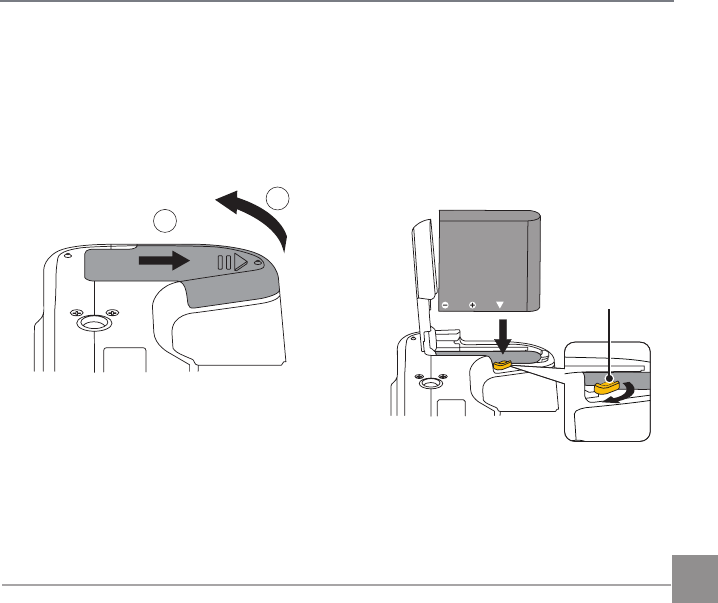

When you install the battery, install it
according to the positive and negative
markings on the battery compartment.
Never force it into the battery
compartment.
Safety notes for battery
![](/img.php?id=2298790&img=bg9.png)
8
We suggest buying only well-known,
name brand memory cards to ensure peak
performance.
Format the memory card using the camera
before you use it or insert a new one.
Do not make the memory card fall off
from high places or hit by heavy objects to
prevent damaging it.
Do not attempt to disassemble or repair the
memory card.
Do not expose the memory card to water.
Always keep it dry.
Do not remove the memory card when
the camera is turned on. Otherwise, the
memory card could be damaged.
Do not directly edit the data on the memory
card. Copy the data to your PC before you
edit them.
When the camera is stored for a long period
of time, be sure to download your photos
and remove the memory card. Store it in a
dry environment.
Do not modify the name of the files or
folders of the memory card using your PC.
Modifying the file names may cause the
files to not be recognized on the camera or a
possible error may occur.
A photo taken with the camera will be
stored in the folder that is automatically
generated on the memory card. Do not store
photos that are not taken using this camera
in these folders as the pictures cannot be
recognized during the playback.
When you insert a memory card, make sure
the notch of the card matches the markings
on the top of the card slot.
Safety notes for memory card
![](/img.php?id=2298790&img=bga.png)
9
Other Safety Notes
Do not disconnect the power or turn the camera off during the update process. Doing so may
cause incorrect data to be written and the camera may not power on later.
Do not hang the neck strap of the camera around the neck of a child.
When using your camera on an airplane, observe the relevant rules specified by the airline.
Due to the limitations of manufacturing technology, LCD may have a few dead or bright pixels.
These pixels do no effect the quality or performance of the camera, photos or video.
Do not expose LCD to water. In a humid environment, only wipe it with a soft and dry cleaning
cloth.
If LCD is damaged and the liquid crystal comes into contact with your skin, wipe your skin with a
dry cloth immediately and rinse it with clean water. If liquid crystal comes into contact with your
eyes, wash them with clean water at least for 15 minutes and seek immediate medical attention.
If you accidentally swallow liquid crystal, rinse your mouth immediately and seek medical
attention.
![](/img.php?id=2298790&img=bgb.png)
10 11
Contents
Before You Start ..............................1
Safety Notes ....................................6
Contents .........................................10
Getting Ready ...............................15
Accessories Included ..................................15
Install Lens Cap and Neck Strap ............... 16
Part Names ...................................................17
Installing Battery and Memory Card ....... 19
Charging Battery..........................................21
Turning Camera On and Off ......................23
Set your Language, Date/Time ................24
Set your Language, Date/Time
after the first power-on ......................24
Resetting your Language ....................25
Resetting Date/Time .......................... 26
Mode Overview ............................27
Display Setting ............................................. 27
LCD Display .................................................. 28
Overview of the screen icons
in photo shooting mode .....................28
Overview of the screen icons
in movie mode ...................................... 29
Overview of the screen icons
in playback mode .................................30
Using the Mode Dial ....................31
![](/img.php?id=2298790&img=bgc.png)
1110 11
Select an appropriate capture mode .......31
Auto Mode ............................................ 32
Program AE ........................................... 34
Shutter priority .....................................34
Aperture priority ..................................34
Manual Mode ....................................... 34
Face Beautifier ......................................36
Wi-Fi Mode ........................................... 37
Scene Mode .......................................... 45
Movie Mode..........................................50
Custom Settings...................................51
Basic Operation ............................53
Using EVF (Electronic View Finder) ........53
Using the Zoom Function ...........................54
Focus Setting ................................................ 55
Macro Mode ................................................. 56
Self-timer Setting ........................................57
Flash Mode ...................................................58
White Balance Setting ................................59
Continuous Shot ..........................................60
EV Settings ....................................................61
Exposure Compensation .................... 61
ISO .......................................................... 62
Shutter Adjustment.............................62
Aperture Adjustment .........................63
Using Quick Recording ...............................63
![](/img.php?id=2298790&img=bgd.png)
12
i Button Function Menu ..............................64
Playback Mode .............................65
Viewing Photos and Videos .......................65
Thumbnail View ...........................................66
Using Zoom Playback (for still
pictures only) ............................................... 67
Photos and Video Deletion ........................68
Slideshow ...................................................... 69
Continuous Capture Group Playback ......70
Animation panorama play ......................... 71
Using the Menus ..........................72
Photo Setup Menu .......................................72
Expo Metering ...................................... 72
Image Size .............................................73
OIS (Optical Image Stabilization) .... 74
Cont. AF ................................................. 74
HDR ........................................................75
Beautifier ............................................... 75
Scene ...................................................... 76
Photo Shooting Settings Menu ................. 77
Quality ...................................................77
AF-Assist Beam ....................................78
Digital Zoom ......................................... 78
Date Imprint .........................................78
Quick Review ........................................ 79
Custom Settings...................................79
![](/img.php?id=2298790&img=bge.png)
13
Movie Menu .................................................80
Expo Metering ...................................... 80
Movie Size ............................................. 81
OIS (Optical Image Stabilization) .... 82
Movie Setting Menu ...................................83
Digital Zoom ......................................... 84
Custom Settings...................................84
Playback Menu.............................................85
Playback Mode .....................................85
HDR ........................................................86
Touch-up ................................................ 86
Rotate ..................................................... 87
Resize ..................................................... 87
i button playback function ................. 88
Playback Settings Menu .............................89
Protect ....................................................90
Delete .....................................................91
DPOF (Digital Print Order Format) .. 92
Trim .........................................................92
General Settings Menu ..............................93
Sound Settings .....................................94
Power Saver ..........................................94
Language ...............................................95
Zone........................................................95
Date/Time ............................................95
LCD Brightness .....................................95
![](/img.php?id=2298790&img=bgf.png)
14 1514
File Settings ..................................................96
Format .................................................... 97
Copy to Card .........................................97
File Numbering ..................................... 98
Reset .......................................................98
FW Version ...........................................99
Connection Settings ................. 100
Connecting to a Computer ..................... 101
Setting the USB Mode ..................... 101
Transferring files to your
computer ............................................ 102
Connecting to a PictBridge
Compatible Printer ................................... 103
Setting the USB Mode ..................... 103
Connecting to your Printer ............. 104
Using the PictBridge Menu ............. 105
Video System ............................................ 109
Set Eye-Fi SD Card Connection Mode .. 110
Supported HDMI Connections .............. 111
Connecting HDMI-Ready TV ......... 111
Appendices ................................. 112
Product Specifications ............................. 112
Prompts and Warning Messages .......... 116
Troubleshooting ........................................ 120
![](/img.php?id=2298790&img=bg10.png)
14 15
Getting Ready
Accessories Included
Your camera box should contain the camera model you purchased along with the following
accessories. If anything is missing or appears to be damaged, please contact your retailer. (The
battery chargers may be a little different in shape due to the difference of countries or regions this
type of cameras are sold to, so please subject to the physical product.)
Micro USB cable
Warranty cardNeck strap
Rechargeable
Li-ion battery
AC adapter Lens cap with strap
Quick Start Guide
Quick start guide
STOP
Service card
![](/img.php?id=2298790&img=bg11.png)
16
Install Lens Cap and Neck Strap
![](/img.php?id=2298790&img=bg12.png)
17
Part Names
5679
8
10
4
3
2
1
11
1. Micro HDMI Port
2. Micro USB Port
3. Zoom Lever
4. Shutter Button
5. Strap Eyelet
6. Exposure Compensation Button
7. Continuous Shot Button
8. Power Button
9. AF Assist Beam/Self-timer Lamp
10. Flash Lamp
11. Lens
![](/img.php?id=2298790&img=bg13.png)
18
1312 14
17
16
18
19
21
2324
22
252627285
20
15
12. Microphone
13. Electronic View Finder (EVF)
14. EVF/ LCD Switch Button
15. Indicator Lamp
16. Mode Dial
17. Fast Video Recording Button
18. Menu Button
19.
AC
AF Button/Up Button
20.
AC
Macro Button/Left Button
21.
CA
Flash Button/Right Button
22.
C
A
Delete Button/Self-timer
Button/Down Button
23. Display Button
24. Playback Button
25. SET Button
26. i Button
27. LCD
28. Speaker
29. Battery Cover
30. Tripod Socket
29
30
![](/img.php?id=2298790&img=bg14.png)
19
1. Open the battery cover according to the
direction of arrow.
1
2
2. Insert the battery into the battery
compartment according to the negative
and positive directions as illustrated in the
picture. Push the battery down until it locks
in place.
Installing Battery and Memory Card
Battery lock knob
![](/img.php?id=2298790&img=bg15.png)
20
4. Close the battery cover.
1
2
3. Insert the memory card into the memory
card slot as shown in the diagram.
Write protection
buckle
The memory card (SD/SDHC) is optional and not included in all camera packaging. If you
have to purchase a memory card, select one with storage capacity between 4GB and 32GB to
ensure correct data storage.
To remove your memory card, open the battery cover, gently press the memory card to eject it
and remove it carefully.
![](/img.php?id=2298790&img=bg16.png)
21
Charging Battery
Please insert the battery and charge it under
shutdown mode.
1. Connect the camera and the power charger
using the supplied Micro USB cable.
2. Insert the plug of the power charger into the
power outlet to charge the battery.
After the battery is stored for a long period
of time, use the supplied power charger to
charge the battery prior to use.
To have maximum battery life, charge the
battery for at least 4 hours the first time.
Charging indicator:
Flashing orange: Charging
The indicator will go out once charging is
finished, and the camera will be powered off
automatically.
2
1
Indicator lamp
![](/img.php?id=2298790&img=bg17.png)
22
3. When the camera is turned off, you can also connect the camera to your PC using a USB cable to
charge the battery.
3
Please charge the battery indoors between 0°C and 40°C.
![](/img.php?id=2298790&img=bg18.png)
23
Turning Camera On and Off
Press the Power button to turn the camera on. To turn the camera off, press the Power button again.
Power Button
Press and hold the button to power on and enter Playback mode.
![](/img.php?id=2298790&img=bg19.png)
24
Set your Language, Date/Time
Set your Language, Date/Time after the first power-on
1. When you turn the camera on for the first time,
the language selection screen appears.
2. Press the
AC
/
C
A
/
AC
/
CA
buttons to select your desired language.
3. After you press the button to confirm the
selection, the Date/Time settings screen
appears.
4. Press the
AC
/
CA
button to select the
Date/Time to be adjusted: Time is displayed in
yyyy:MM:dd HH:mm.
5. Press the
AC
/
C
A
button to adjust
the value for the selected Date/Time.
6. Press the button to confirm the time settings
and the shooting screen appears.
য檥Иކ
English
Français
এѽИކ
ޙߎ寉
㷼ᄙⱥ
Español
Svenska
Português
Italiano
Deutsch
Рyсский
Language
Date & Time
:
06 20 00 00
Back
H-M
2014
![](/img.php?id=2298790&img=bg1a.png)
25
1. Press the button, press the
AC
/
C
A
button to select , and press the
button to enter the menu.
2. Press the
AC
/
C
A
button to select
, and press the button or the
CA
button to
enter the menu.
3. Press the
AC
/
C
A
button to select
「Language」and press the button or the
CA
button to enter the menu.
4. Press the
AC
/
C
A
/
AC
/
CA
buttons to select your desired language and
press the button to confirm.
5. Press the button and the shooting screen
appears.
Sound Settings
Power Saver Auto
Language English
World Time Home
Date & Time 2014.06.20 00:00
য檥Иކ
English
Français
এѽИކ
ޙߎ寉
㷼ᄙⱥ
Español
Svenska
Português
Italiano
Deutsch
Рyсский
Language
Resetting your Language
After you set your language for the first time, follow the instructions below to reset your language.
![](/img.php?id=2298790&img=bg1b.png)
26 2726
1. Press the button, press the
AC
/
C
A
button to select , and press the
button to enter the menu.
2. Press the
AC
/
C
A
button to select
, and press the button or the
CA
button to
enter the menu.
3. Press the
AC
/
C
A
button to select
「Date & Time」and press the button or the
CA
button to enter the menu.
4. Press the
AC
/
CA
button to select the
Date/Time to be adjusted: Time is displayed in
yyyy:MM:dd HH:mm.
5. Press the
AC
/
C
A
button to press the
value for your selected block. After you finish
your settings, press the button to confirm.
6. Press the button and the shooting screen
appears.
Resetting Date/Time
After you set your Date/Time for the first time, follow the instructions below to reset date and time.
Sound Settings
Power Saver Auto
Language English
World Time Home
Date & Time 2014.06.20 00:00
Date & Time
:
06 20 00 00
Back
H-M
2014
![](/img.php?id=2298790&img=bg1c.png)
26 27
Off: Does not display any additional icons on
screen
Mode Overview
Display Setting
Press the button to display the settings: Classic, Full, Off.
Classic: Displays the camera parameters on
screen
-0.3 EV
F2.8 400 ISO
1234
00:56:00
SD
1/50
Full: Camera parameters with Grid and
Histogram
-0.3 EV 400 ISO
1234
00:56:00
SD
F2.8 1/50
![](/img.php?id=2298790&img=bg1d.png)
28
LCD Display
Overview of the screen icons in photo shooting mode
8 White Balance
9 Color Effect
10 Number of remaining shots
11 Image Size
12 Video Quality
13 ISO Value
14 Remaining Recording Time
15 Exposure Compensation
16 Shutter Speed
17 Histogram
18 Aperture Value
19 OIS (Optical Image Stabilization)
20 HDR
21 Eye-Fi ON (with signal)
22 Expo Metering
23 Continuous Shot
24 AF Mode
25 Flash Mode
1234
-0.3 EV 400 ISO
00:56:00
SD
16M
1/50
x3.6x3.6
F3.6F3.6
1 Shooting Mode
2 Macro Mode
3 Self-timer
4 Zoom Display (By turning the Zoom
Lever)
5 Focus Frame
6 SD Memory Card/Built-in Memory
7 Battery Status
![](/img.php?id=2298790&img=bg1e.png)
29
-0.3 EV
00:56:00
00:56:00
SD
x3.6
1 Movie Mode
2 Macro Mode
3 Self-timer
4 Zoom Display (By turning the Zoom
Lever)
5 SD Memory Card/Built-in Memory
6 Battery Status
7 Color Effect
8 Video Quality
9 Remaining Recording Time
10 Exposure Compensation
11 OIS (Optical Image Stabilization)
12 Focus Frame
13 Eye-Fi ON (with signal)
14 Expo Metering
15 AF Mode
For optimal video shooting, it is
recommended that an SDHC memory
card be used.
Optical Zoom and Digital Zoom can be
adjusted (208X in total). Digital Zoom
can be adjusted to 4X.
Overview of the screen icons in movie mode
![](/img.php?id=2298790&img=bg1f.png)
30 3130
1 DPOF File
2 File Protection
3 Memory Space (indicating the current
number of photos and total number of
photos)
4 SD Memory Card/Built-in Memory
5 Battery Status
6 Zoom Magnification Area
7 Image Zoom Ratios
8 Image Zone
9 Shooting Date
10 Continuous Capture Group Playback
11 Eye-Fi ON (with signal)
12 Red-Eye Reduction
13 HDR
14 Date Folder
Overview of the screen icons in playback mode
![](/img.php?id=2298790&img=bg20.png)
30 31
This camera provides a convenient mode dial that allows you to manually switch between
different modes with ease.
Select an appropriate capture mode
1. Press the Power button to turn the camera on, and make camera lens focus on the subject to be
shot then find a view by the LCD.
2. Rotate the mode dial to select an appropriate shooting mode.
Auto Mode Manual Mode Movie Mode
Program AE Face Beautifier Custom Settings
Shutter priority Wi-Fi Mode
Aperture priority Scene Mode
3. Rotate the zoom lever to zoom in or out of the subjects and compose a photo within the framing
scope.
4. Press the Shutter button half way down to focus on the subject. When the focus frame turns
green, press the Shutter button completely down to take the picture.
Using the Mode Dial
![](/img.php?id=2298790&img=bg21.png)
32
Auto Mode
The camera will automatically detect the most suitable scene to capture the best pictures.
SD
00:56:00
Auto Mode
The camera will automatically adjust the exposure and focus to ensure the best possible pictures.
Landscape Mode
For landscapes, will automatically adjust the exposure and reproduce vivid green and blue colors.
![](/img.php?id=2298790&img=bg22.png)
33
Portrait Mode
Most suitable for capturing people with focus on their faces.
Night Portrait
When you take portraits at night, or in low light conditions, will automatically adjust the exposure
for people and night scenes.
Backlit Portrait
When the sun or any other light source is behind you, will automatically adjust the foreground
exposure to produce the best pictures possible.
Night Mode
For night scenes, will automatically increase the ISO value to compensate for low light.
Macro Mode
To produce more detailed close-ups, will automatically engage the camera’s Macro Mode and
automatically focus the lens.
![](/img.php?id=2298790&img=bg23.png)
34
Program AE
The user can switch the ISO and EV value according to personal preference, the camera can
automatically set the shutter speed and aperture value.
Shutter priority
The user can adjust the shutter speed, EV and ISO values. It is mostly used to shoot the moving
object.
Aperture priority
The user can adjust the aperture size, EV and ISO values. It is generally used to shoot inanimate
object and control the view depth.
Manual Mode
The user can adjust the aperture size, EV and ISO values manually. It is generally used to shoot
static photos.
![](/img.php?id=2298790&img=bg24.png)
35
Mode:
Follow the steps below to adjust the parameters:
1. Rotate the mode dial to select a mode you want, press the button to configure settings.
1/50
400 ISO
1/50
400 ISO
0.3 EV
0.3 EV
F2.8F2.8
2. Press the
AC
/
CA
button to select an adjustment item.
3. Press the
AC
/
C
A
button to adjust the parameters.
4. Press the button to confirm the settings and enter the shooting screen.
Items that can be adjusted under mode: ( O: Optional X: Not optional, auto display)
Items
Mode Aperture value Shutter speed EV value ISO value
X X O O
X O O O
O X O O
O O X O
![](/img.php?id=2298790&img=bg25.png)
36
Face Beautifier
The camera is set to automatically adjust camera exposure for realistic portrayal of skin tones.
1. Rotate the mode dial to select .
2. Press the button and press the
AC
/
C
A
button to select .
3. Press the
AC
/
CA
button to select an option and press the button to confirm and
return to photo shooting mode.
1234
-0.3 EV 400 ISO
SD
16M
00:56:00
x3.6
x3.6
• Effect 1: Skin Soften
• Effect 2: Skin Soften+Eye Brightening
• Effect 3: Skin Soften+Eye Brightening+Eye Enlargement
![](/img.php?id=2298790&img=bg26.png)
37
Wi-Fi Mode
Make image transmission and remote control by connecting smart device with Wi-Fi.
Matters needing attention before use
Before use, please confirm that your smart device is a smart phone with Android 2.3 or 4.x
system, a tablet computer with Android 4.x or is an iOS 6/7 system. If not, please upgrade your
smart device before using the APP.
Please do not use in places having high intensity magnetic field, electrostatic and electric wave
interference (for example near a microwave oven), which may cause failure in receiving signals.
To maintain a connection, please keep the camera within 10 meters (32.8 feet) without signal
shielding interference.
Please do not use Wi-Fi connection functionality on a plane.
The camera and the smart device can only be connected one to one.
![](/img.php?id=2298790&img=bg27.png)
38
Android system:
Search for “PIXPRO Remote Viewer” from
Google play and install it.
iOS system:
Search for “PIXPRO Remote Viewer” from APP
Store and install it.
Route of downloading the APP package:
Please download APP installation package(APP name: PIXPRO Remote Viewer) to your
smart device from the path below and install this application procedure according to the
interface prompt.
https://play.google.com/store/apps/
details?id=com.jkimaging.pixproremoteviewer
https://itunes.apple.com/us/app/
pixpro-remote-viewer/id833154167?mt=8
Refer to the "PIXPRO Remote Viewer User Manual" located on the web:
http://kodakpixpro.com/
Americas/support/downloads.php
http://www.kodakpixpro.com/
Europe/support/multi-lang-downloads.php
Americas Europe
![](/img.php?id=2298790&img=bg28.png)
39
1. Rotate the mode dial to select and then enter the Wi-Fi selection interface.
Settings Station AP mode
Wi-Fi Mode
In AP mode, the camera will act as an access point
enabling another wifi device to connect to it.
2. Press the
AC
/
CA
button to select and set options.
• 「Settings」: Customize the Wi-Fi settings for the camera system.
• 「Station」: Use the Station Mode to connect to a "Personal Hotspot" created by
your mobile device.
• 「AP mode」: In AP mode, the camera will act as an access point enabling another Wi-
Fi device to connect to it.
Rotate the mode dial to disconnect.
![](/img.php?id=2298790&img=bg29.png)
40
AP mode
This camera may connect with your smart
device through Wi-Fi.
Settings of Camera:
1. Select and press the button to enter
the setting interface.
AP mode
Back
Setting pre-connected device for the
following serial number:
99/* 15*'16/>685'@E>>>>
WPA2 PSK: XXXXXXXX
Refresh
Press the
AC
/
C
A
button to
select :
• Refresh: Create a new WPA2 PSK
password
• Back: Back to previous page
Settings of Smart Device:
2. Enable the Wi-Fi of smart device and then
search surrounding wireless devices.
3. Select the name of camera SSID to be
connected and then input the eight-digit
number password after WPA2 PSK on the
camera.
4. Click the icon of the APP to enable the
APP.
Set up completion:
5. Once the APP is connected to the camera,
functional operations can be enabled on the
smart device.
![](/img.php?id=2298790&img=bg2a.png)
41
Station
Enable image transmission and remote control
by connecting the camera with a Wi-Fi access
point created by your smart device.
1. Enable the Wi-Fi access point of smart
device.
2. Select on camera and then press the
button to confirm connection with smart
device.
Station
Wi-Fi Mode
Device1-SSID
Device2-SSID
Device3-SSID
Searching for devices.
*SSID
6FDQ%DFN
Press the
AC
/
CA
button to select:
• Scan: Search again surrounding wireless
devices.
• : Select the name of device to be
connected.
• Back: Back to previous page.
3. Press the
AC
/
C
A
button to
select the name of smart device to be
connected and then press the button
to confirm. Then, the camera enters the
password input interface.
Type the network security key
Enter Password
#!?
ABCDEFGH IJ
KLMNOPQ RST
UV
WXYZ
A/a
4567 90
123
CancelSave
Meanings of interface icons:
Icon Description
Delete the last letter
$D
Switch the display of letters in
capital and lowercase
Move the Cursor
#!? Switch the symbol input
Input Space
![](/img.php?id=2298790&img=bg2b.png)
42
Display of Wi-Fi Connection Status
The Wi-Fi has successfully connected but APP
is not enabled:
Wi-Fi Mode
Connected with device.
3')GJJXKYY ^^ ^^ ^^
AP mode
Disconnect
The Wi-Fi has successfully connected and APP
is enabled:
Wi-Fi Mode
Connected with APP
XXXXX
Disconnect
4. Press the
AC
/
C
A
/
AC
/
CA
buttons to select and then press
the button to confirm your selection.
Enter the completion of WPA2 PSK after
password storage.
5. Connect immediately after saving.
• If connected, the LCD will display as
shown below:
Station
Wi-Fi Mode
Connected with device
SSID: XXXXXXXX
Disconnect
• If connect failed, please check Wi-Fi
device and try again.
6. After connection, click the icon of the APP
on the smart device, you may use it to
carry out relative operation.
![](/img.php?id=2298790&img=bg2c.png)
43
The Wi-Fi of smart device interrupts:
Wi-Fi Mode
Disconnected, please check
Wi-Fi device and try again.
AP mode
Back
• Back: Back to Wi-Fi mode SSID screen.
For interrupting the connection:
Wi-Fi Mode
Disconnect from device?
No
Yes
• No: Keep Wi-Fi connected and back to
previous page.
• Yes: Disconnect and back to Wi-Fi
mode for interface connection.
![](/img.php?id=2298790&img=bg2d.png)
44
DSC device
The default name of DSC device is「KODAK
PIXPRO AZ526」. Change the name of DSC
device through key stroking.
Name between 1-18 Letters
KODAK PIXPRO AZ526
Cancel
DSC device
Save
#!?
ABCDEFGH IJ
KLMNOPQ RST
UV
WXYZ
A/a
4567 90
123
For the method of input, please refer to the
introduction on password input on Page 41.
MAC address
Check the wireless MAC address of this
camera.
Settings
The name of this camera can be changed
through key stroking.
1. Select and then press the button to
enter the setting interface.
2. Press the
AC
/
C
A
button to
select the option to be adjusted and then
press the button to enter the menu.
DSC device
MAC address
KODAK PIXPRO AZ526
386793XXXXXX
3. Press the button to confirm settings and
then skip the menu.
![](/img.php?id=2298790&img=bg2e.png)
45
Scene Mode
The user can select an appropriate mode from the 13 scene modes according to the type of
environment you are shooting. The camera then configures the most appropriate settings
automatically.
1. Rotate the mode dial to select .
2. Press the
AC
/
C
A
/
AC
/
CA
buttons to select a scene, and press the button
to confirm.
Multi Exposure
3. If any need of changing the scene, please press the button and then the button and finally
the
AC
/
C
A
/
AC
/
CA
buttons to reselect the scene.
