Copy to Card
Use this setting to copy the files stored in the
built-in memory to a memory card.
Copy to Card
Copy files from built-in memory to
the memory card.
No
Yes
If there is no card available in the camera,
this function will not be displayed.
97

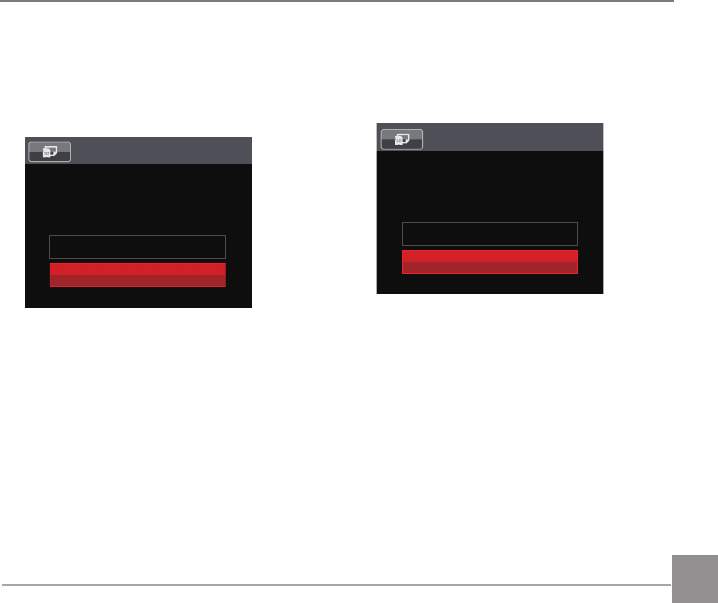

Reset
Use this setting to restore the camera to its
original default settings.
Reset
Reset camera settings to factory defaults.
No
Yes
File Numbering
After you take a picture or video clip, the
camera will save it with a sequential number.
You can use this to reset the file numbering to 1.
File Numbering
Create a new directory and
reset the file number.
No
Yes
98 9998
FW Version
Use this setting to view the current camera
firmware version.
FW Version
Current Ver:1.XX
Back
When there is a new firmware version in the
memory card, select「Yes」to update.
FW Version
Current Ver:1.XX
New Ver.:2.XX
Cancel
Yes
Update Firmware?
98 99
Connection Settings
Mode:
1. Press the button, press the
AC
/
C
A
button to select and press the button to
enter the menu.
2. Press the
AC
/
C
A
button to select and press the button or the
CA
button to
enter the menu.
3. Press the
AC
/
C
A
button to select the item to be set and press the button or the
CA
button to enter the menu.
USB PC
TV-System NTSC
Eye-Fi Off
4. Press the
AC
/
C
A
button to select an option and press the button to confirm.
Refer to the following pages for more details about each setting.
100
Connecting to a Computer
You can use the Micro USB cable to connect the camera and copy (transmit) photos to a computer,
printer or other device.
Setting the USB Mode
The camera’s Micro USB port can be set to connect with either a computer or a printer. The
following steps will allow you to ensure that the camera is correctly configured to connect with a PC.

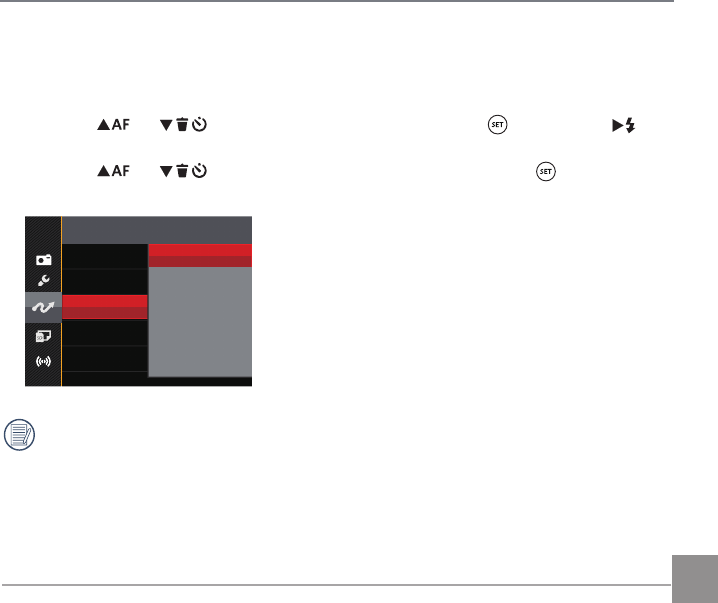

1. Press the
AC
/
C
A
button to select「USB」and press the button or the
CA
button to enter the menu.
2. Press the
/
C
A
button to select「PC」and press the button to confirm.
USB PC
Printer
101

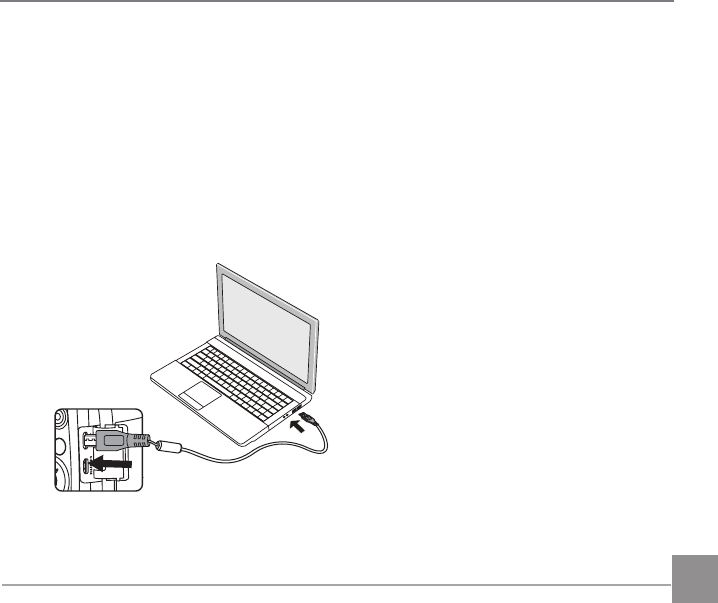

Transferring files to your computer
The computer will automatically detect the camera as a removable drive. Double-click the My
Computer icon on the desktop to locate the removable drive and to copy folders and files in the
drive to a directory on your PC as you would copy any typical folder or file.
Follow the steps below to connect the camera to a computer.
1. Make sure the computer is turned on.
2. Connect one end of the supplied Micro USB cable to the Micro USB port on your
camera.
3. Connect the other end of the cable to an available USB port on your computer.
4. After the transmission is complete, disconnect the Micro USB cable according to the instructions
specifying how to safely remove USB devices.
102
To find out if a printer is
PictBridge compatible,
simply look for the PictBridge
logo on the packaging or
check the owner’s manual
for specifications. With the
PictBridge function on your camera, you
can print the captured photos directly to
a PictBridge compatible printer using the
supplied Micro USB cable, without the need
for a PC.
Setting the USB Mode
The camera’s Micro USB port can be set to
connect with either a PC or a Printer; the
following steps will ensure that the camera is
correctly configured to connect with a Printer.
1. Press the
AC
/
C
A
button to
select「USB」and press the button or
the
CA
button to enter the menu.
2. Press the
AC
/
C
A
button to
select「Printer」and press the button
to confirm.
USB PC
Printer
After the camera is reset, it will switch
to PC mode automatically from USB
mode.
See “PictBridge“ section on page 104.
Connecting to a PictBridge Compatible Printer
PictBridge technology allows printing of the photos saved in the memory card by the printer.
103
If the camera is not connected to a PictBridge
compatible printer, the following error message
will appear on the LCD.
Connection Failed!
The error message above will also appear
if the USB mode is set incorrectly, in
which case you should disconnect the
Micro USB cable, check the USB mode
settings, ensure that the printer is turned
on, and then try connecting the Micro
USB cable again.
1. Make sure the printer is turned on.
2. Connect one end of the supplied Micro USB
cable to the Micro USB port on your camera.
3. Connect the other end of the cable to the
USB port on the printer.
Connecting to your Printer
104

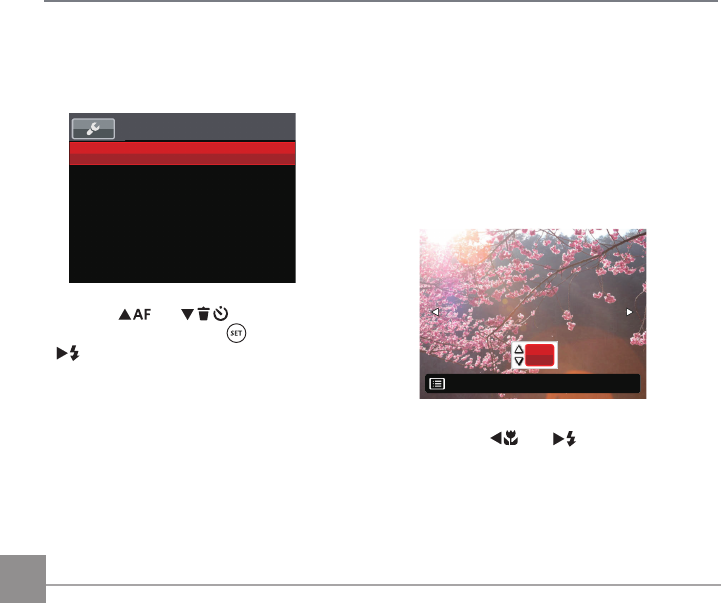

After setting the USB mode to Printer, the
PictBridge menu will appear.
PictBridge
Print (with Date)
Exit
Print (without Date)
Print Index
Print DPOF Images
Press the
AC
/
C
A
button to select
a menu item and press the button or the
CA
button to enter the item.
Refer to the following sections for more
detailed information on each setting.
Using the PictBridge Menu
Print (with Date)
If you have set the date and time on your
camera, the date and time will be recorded and
saved with each photo you take.
1. In the PictBridge menu, select「Print (with
Date)」and the screen as shown below
appears.
01
Back
2. Press the
AC
/
CA
button to select a
photo to be printed.
105
3. Press the
AC
/
C
A
button
to select the number of copies for the
currently displayed photo.
4. Press the button and the following
screen will appear.
Print (with Date)
Cancel
Yes
5. Select「Yes」and press the button to
confirm printing; select「Cancel」and
press the button to cancel printing.
Print (without Date)
Use this setting to print the photos without
dates on them.
1. In the PictBridge menu, select「Print
(without Date)」and the screen as shown
below appears.
01
Back
2. Press the
AC
/
CA
button to select a
photo to be printed.
3. Press the
AC
/
C
A
button
to select the number of copies for the
currently displayed photo.
106
4. Press the button and the following
screen will appear.
Print (Without Date)
Cancel
Yes
5. Select「Yes」and press the button to
confirm printing; select「Cancel」and
press the button to cancel printing.
Print Index
You can print all photos in the camera via this
function.
1. In the PictBridge menu, select「Print
Index」and the screen as shown below
appears.
Yes
Print Index
Cancel
Yes
2. Select「Yes」and press the button to
confirm printing; select「Cancel」and
press the button to cancel printing.
107
Print DPOF Images
To use DPOF printing, you must select your
photos for printing using the DPOF settings
beforehand. See “DPOF” section on page 91.
1. In the PictBridge menu, select「Print DPOF
Images」and the screen as shown below
appears.
Print DPOF Images
Cancel
Yes
2. Select「Yes」and press the button to
confirm printing; select「Cancel」and
press the button to cancel printing.
Exit
Select「Exit」to exit the PictBridge menu. At
this time, the message「Remove USB Cable!」
appears on the screen.
Remove USB Cable!
Disconnect the Micro USB cable from the
camera and printer.
108
Video System
You can use the AV cable (which should be purchased separately) to connect the camera and the
television for realizing the video output. Connect one end of the AV cable to USB/AV port of the
camera; connect the other end to AV-OUT port of the television. Adjust the format of the video
output system according to your requirements, and the steps are as follows:
1. Press the
AC
/
C
A
button to select「TV-System」and press the button or the
CA
button to enter the menu.
2. Press the
/
C
A
button to select「NTSC」, and press the button to confirm.
TV-System
PAL
NTSC
The video output system would change accordingly based upon the changes of the selected
language.
NTSC: English, Chinese (Traditional), Japanese, French, Korean, Russian, Vietnamese,
Greek, Hungarian
PAL: German, Spanish, Italian, Chinese (Simplified), Portuguese, Swedish, Danish, Finnish,
Indonesia, Norwegian, Dutch, Turkish, Polish, Thai, Croatian, Czech, Arabic, Hindi
109
Set Eye-Fi SD Card Connection Mode
This camera supports the wireless connection for Eye-Fi memory card, Enable Eye-Fi connection by
following below steps.

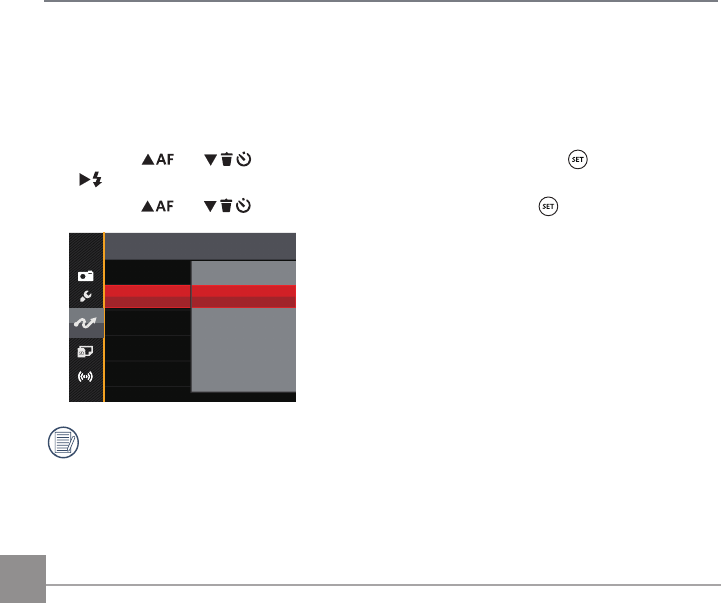

1. Press the
/
C
A
button to select「Eye-Fi」and press the button or the
CA
button to enter the menu.
2. Press the
/
C
A
button to select「On」or「Off」and press the button to
confirm.
Eye-Fi
Off
On
If the Eye-Fi card is not available in the camera, this feature is not displayed.
110 111110
Supported HDMI Connections
HDMI (High Definition Multimedia Interface) is a fully digital audio/video transmission interface,
through which uncompressed audio and video signals are transmitted. Direct transmission of digital
video signals to your TV reduces conversion loss and improves image quality.

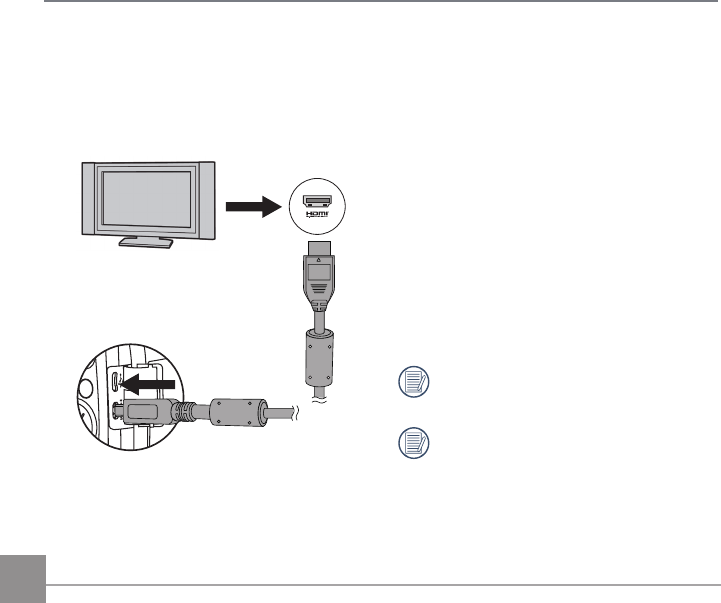

Connecting HDMI-Ready TV
1. Use the cable with high resolution output
terminal (which should be purchased
separately) to connect the camera to the
television which meets HDMI standard.
2. The camera will be automatically detected
by the TV.
3. After connecting via HDMI, the camera
enters Playback Mode.
Make sure the camera and the TV are
both turned on before connecting.
Refer to your TV instruction manual for
information on what resolution sizes it
will support. The resolution and output
formats that are not supported will be
grayed out on the camera’s LCD.
HDMI
(Type D)
110 111
Product Specifications
Design and specifications are subject to change without notice.
Image Sensor
Type 1/2.3”BSI CMOS
Effective Pixels 16.35 Megapixels
Total Pixels 16.76 Megapixels
Lens
Focal Length 4.3mm (Wide) — 223.6mm (Tele)
35mm film equivalent 24mm (Wide) — 1248mm (Tele)
F number F2.8 (Wide) ~ F5.6 (Tele)
Lens Construction 13 groups 15 elements
Optical Zoom 52x
Optical Zoom Normal: (Wide) 60cm ~ ∞, (Tele) 300cm ~ ∞;
Macro: 1cm ~ ∞ (Wide Only)
Autofocus System TTL Autofocus
Anti-Handshake Optical Image Stabilization
Digital Zoom 4x Digital Zoom (Combined Zoom: 208x)
Appendices
112
Number of
Recording
Pixels
Still Image
(4:3)
16MP: 4608 X 3456
10MP: 3648 X 2736
5MP: 2592 X 1944
3MP: 2048 X 1536
0.3MP: 640 X 480
(3:2)
14MP: 4608 X 3072
(16:9)
12MP: 4608 X 2592
2MP: 1920 X 1080
Movie 1920 X 1080 (30fps), 1280 X 720 (60fps/30fps), 640 X 480 (30fps),
High-Speed Movie: 640 X 480 (120fps)
Image Compression Best, Fine, Normal
DCF, DPOF (Ver1.1)
Support Ye s
File Format
Still Image Exif 2.3 (JPEG)
Movie MOV [Image: H.264; Audio: Linear PCM (Stereo)]
Shooting Modes
Auto Mode, Program AE, Shutter priority, Aperture priority, Manual
Mode, Face Beautifier, Wi-Fi Mode, Scene Mode [Handheld Night,
Pet Mode, Sunset, Fireworks, Multi Exposure, Sport, Night Portrait,
Landscape, Portrait, Snow, Children, Party, Panorama Mode], Movie
Mode, Custom Settings
Detection Features Face, Smile, Blink, Cat, Dog
Photo Touch-up Red-Eye Reduction, Skin Soften, Eye Brightening, Eye Enlargement
HDR Ye s
113
Scan Panorama Up to 360°
LCD 3.0 inch (460k Pixels)
Image Auto Rotation Ye s
ISO Sensitivity Auto, ISO100/200/400/800/1600/3200
AF Method Single AF, Multi-AF (TTL 25-point), Object Tracking ,
Face-Detection
Exposure Metering
Method
Artificial Intelligence AE (AiAE), Center-Weighted Average, Spot
(Fixed to Center of Frame), Face AE
Exposure Control Method Program AE (AE-Lock Available), Shutter Prior AE, Aperture Prior AE
Exposure Compensation ±3EV in 1/3 Step Increments
Shutter Speed 1/2000 ~ 30 Seconds
Continuous Shot Ye s
Playback Modes Single, Index (9/16 Thumbnails), Slide Show, Date,
Continuous Shooting, Zoom (Approx. X 2 ~ X 8)
White Balance Control AWB, Daylight, Cloudy, Fluorescent, Fluorescent CWF, Incandescent,
Manual WB, Color Temp. (1900K ~ 10000K)
Flash
Flash Method Pop-up (Manual)
Flash Modes Force Off, Flash Auto, Fill Flash, Red-Eye Reduction, Slow Sync.,
Slow Sync.+Red-Eye Reduction,
114
Recording Media Internal Memory: Approx. 8MB
SD/SDHC Card (Up to 32GB Support) [MMC Card Not Supported]
PictBridge, ExifPrint
Support Ye s
Multi-Language Support 27 Languages
Jacks AV-OUT/USB 2.0 (Micro 5 pin USB), HDMI (Type D)
Eye-Fi Support Ye s
Wi-Fi Yes (802.11 b/g/n)
Remote Viewfinder Yes (via smart device)
Power Rechargeable Li-ion Battery LB-060, 3.7V 1100mAh, In-Camera
Charging
Shooting Capability
(Battery Performance) Approx. 240 Shots (Based on CIPA Standards)
Operation Environment Temperature: 0 ~ 40°C, Humidity: 0 ~ 90%
Dimensions (W X H X D) Approx. 121.3 X 85.8 X 97.5mm (Based on CIPA Standards)
Weight Approx. 508g (Body only)
115
Prompts and Warning Messages
Message Description Action
Warning! Battery
exhausted.
Warning before power off when the
camera battery is exhausted.
Displaying that it will power
off after 2 seconds.
Lens obstruction,
Re-start Camera.
The lens is jammed or some foreign
object is preventing the lens from
functioning properly.
Turn off the camera and
restart it to reset the lens.
Suggest using tripod.
When continuous exposure is enabled,
this prompt message is displayed when
the photo shooting screen is displayed
for the first time.
The message will disappear
after 2 seconds.
Built-in memory error! An error occurs in built-in memory. The message will disappear
after 2 seconds.
Improper alignment.
Please try again.
The offset is too big for panorama
shooting.
Remove the message after
2 seconds and return to
shooting.
Warning! Do not turn
off your camera during
update!
The message appears during the
firmware update process.
The message disappears
after the camera update and
restart.
116
Message Description Action
Remove USB Cable! Indicates that you can disconnect the
Micro USB cable.
The message disappears after
you disconnect the Micro
USB cable.
Connection Failed! Failure to connect to your PC, printer,
TV (with HDMI).
Remove the cable and retry
connection.
Write Protect !
When you boot, press the shutter
button or edit the files under playback
mode, and the SD card is locked, the
message appear.
The message will disappear
after 2 seconds.
Card Full !
When you boot, press the shutter
button or edit the files under playback
mode, and the SD card is full, the
message appear.
The message will disappear
after 2 seconds.
Memory Full !
When you boot, press the shutter
button or edit the files under playback
mode, and the camera memory is full,
the message appear.
The message will disappear
after 2 seconds.
117
Message Description Action
Card Error ! The memory card can’t be identified
after being formatted. Normal display.
Card is not formatted. When an error occurs in the SD card, the
message “Not Formatted” appears.
Disappear after 2 seconds
and enter the formatting
process.
Slow access
When a SD card lower than Class 4 is
used to record a HD movie, the writing
speed will be slower and recording will
not continue.
Remove the message after
2 seconds and return to
shooting.
Cannot write to SD
card.
The photo shooting or video recording
has been interrupted so recording
cannot continue.
Remove the message after
2 seconds and return to
shooting.
No Red-Eye Detected! Red eyes have not been detected in the
image.
The message will disappear
after 2 seconds.
This image cannot be
edited.
The file format does not support editing
or the edited file cannot be edited again.
The message will disappear
after 2 seconds.
118
Message Description Action
Exceeded
maximum folder
number.
When you boot, press the shutter button or
edit the files under playback mode, and the
SD card exceeded the maximum number of
folders (999), the message appear.
The message will
end after the camera
processing is complete.
Too many pictures
for fast processing.
During the playback by date, the images
exceed specifications so that it is not possible
to play by date.
The message disappears
after 2 seconds and the
camera returns to the
normal playback mode.
Unable to
recognize files.
The format of the file to be viewed is not
supported or the file is corrupted so it cannot
be properly read.
This image message
disappears only after the
file is deleted.
No Picture! When you press the play button, no image
files exist in the camera or memory card.
The message disappears
2 seconds later to return
to the photo shooting
screen.
No continuous
group file.
When you switch from the playback mode
to continuous photo mode, there is no
continuous group file.
The message disappears
after 2 seconds and the
camera returns to the
normal playback mode.
Protected!
Undeletable!
The file is protected. The message appears
when you delete it.
The message will
disappear after 2 seconds.
119
Troubleshooting
Problem Possible Causes Solution
Camera does not
turn on
The battery has been depleted.
The battery is not inserted
correctly.
Recharge the battery.
Correctly reinstall the battery.
Camera turns off
suddenly during
operation
The batteries have been
depleted. Recharge the battery.
The picture is blurred Camera shakes while taking a
picture.
Turn on OIS feature.
Please use tripod for high
magnification (above 15X) optical
zoom.
Images and video files
cannot be saved
The SD memory card is full.
The memory card is locked.
Use another memory card or
delete unnecessary files.
Unlock the memory card.
Images will not print
from the connected
printer
The camera is not connected to
the printer correctly.
The printer is not PictBridge
compatible.
The printer is out of paper or ink.
The printer paper is jammed.
Check the connection between the
camera and printer.
Use a PictBridge compatible
printer.
Load paper into the printer or
replace the ink cartridge in the
printer.
Remove the jammed paper.
120
Problem Possible Causes Solution
Saving data to memory
card is slow
Using a memory card below Class
4 may result in slower recording
times.
Use an SD card with write
Class higher than 4 to
improve performance.
Cannot write to the
memory card
The SD memory card has been
locked.
The camera may experience
trouble recording HD movies to
SD cards with a rating lower than
Class 4.
Release the write lock of the
memory card or replace with
another card.
Use an SD card with write
Class higher than 4 to
improve performance.
Too many movies to
process
The number of pictures or folders
in the SD memory card exceed the
specifications, so the playback of
data folder cannot be displayed.
Delete unwanted files.
The flash icon
appears on the LCD
Current shooting environment
requires flash. Turn on flash.
When shooting with stacked filters attached, the corners of the photo may turn dark
(Vignetting effect) because the filter holder blocks light from reaching the camera image
sensor; especially, at wide angle zoom control settings. Please take test shots and review the
results when using stacked filters.
Ver. 1
The Kodak trademark and trade dress are used under license from Kodak.
© 2014 by JK Imaging Ltd. All rights reserved.
JK Imaging Ltd. 1411 W. 190th Street, Suite 550, Gardena, CA 90248, USA
www.kodakpixpro.com
Licensed
Product

Navigation menu
